3F PIC / 1000 Series PIC
For further information and pricing, please get in touch with us.
A specialist gas analysis system for fast event UHV studies
Hiden’s 3F PIC Series Quadrupoles are high precision triple filter analysers with digital detectors for ultimate sensitivity and time resolution in UHV TPD applications.
Applications

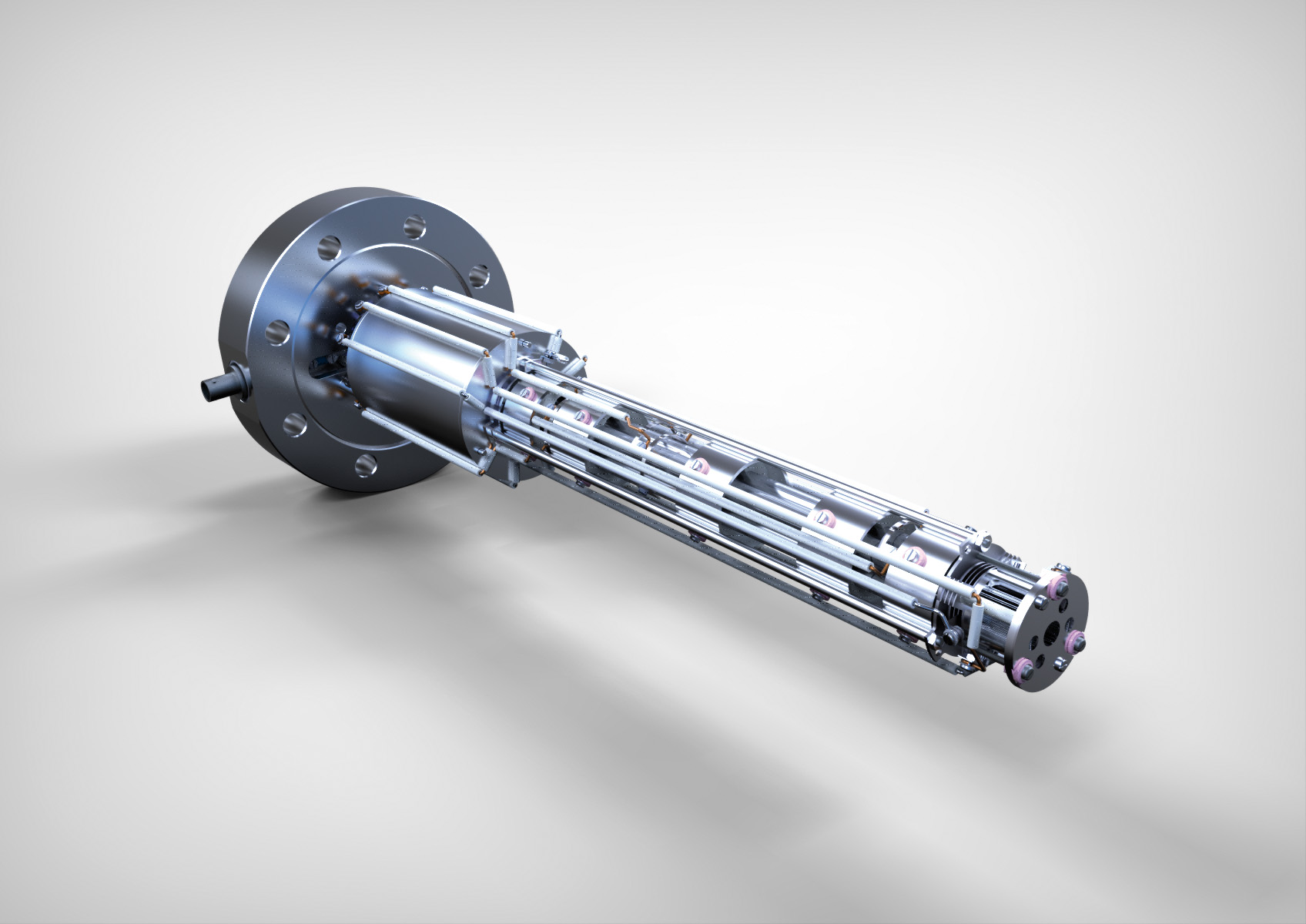

3F Series analysers include an optional UHV compatible mass filter shroud and low profile ion source for close positioning to the desorption surface.
Both analogue and digital inputs are provided for synchronous acquisition start and sample temperature data display alongside mass channel data.
Multiple ion detection mode allows more than 100 channels to be monitored simultaneously, each with a unique set of MS parameters. Choose species from the internal library or via NIST MS database with direct import/export to MASsoft Professional software.
The system is supplied with MASsoft Professional software.
This Windows 10 and Windows 11 compatible software allows control of the instrument via USB 2.0, RS232 or Ethernet. Provides comprehensive I/O for data output and for reading data from external devices for integration and display with mass spectrometer data.
Research featuring data from the Hiden Analytical HAL/3F PIC for UHV TPD mass spectrometer :
Thermal Deposition of Pure Water Ice in the Interstellar Medium
Thermal Desorption of H2O/CO Ices
Thermal Desorption of H2O/CH3OH/CO Ices
Survey of the Thermal Desorption of Astrophysically Relevant Molecules
Aix-Marseille Université
Retention and release of hydrogen isotopes in tungsten plasma-facing components
