Products for Gas Analysis
Gas Analysis Equipment
Discover Hiden Analytical’s range of gas analysis equipment, including gas analysers for research, development, routine analysis and industrial process monitoring. Browse the collection to compare mass spectrometry-based systems for gases, vapours, evolved gases, dissolved gases, and process streams, or explore our gas analysis applications to find the most relevant solution for your measurement requirements.
Benchtop Gas Analysis Systems
Systems for Electrochemistry
Dissolved Gas Analysers
Process Analysis Systems
Specialist Gas Analysis Systems
QGA 2.0
This new system builds upon the solid foundation of our original QGA system, incorporating significant enhancements for improved performance and ease of use. The QGA 2.0 is lighter, more user-friendly, environmentally considerate, and packed with powerful features.

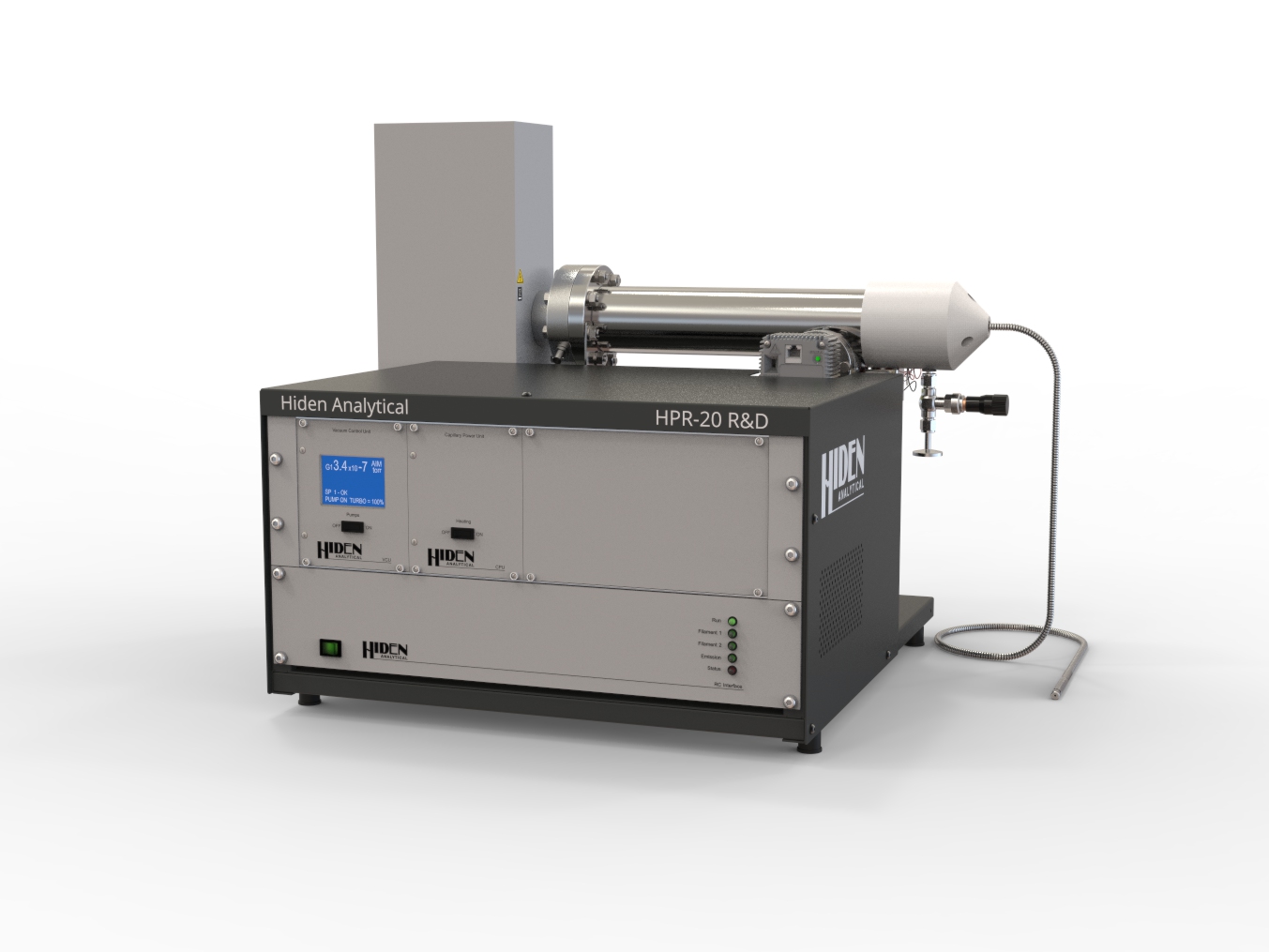

HPR-20 R&D
Advanced, high sensitivity bench top and mobile gas mass range options. Integrated gas mixing panel accessories and 5 ppb ultimate detection limit.
HPR-20 TMS
Fast response transient gas analysis system featuring dedicated pulse ion counting detector for sub 200 msecs response to ppm/% level gas concentration changes.

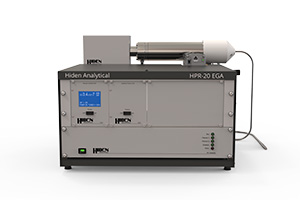

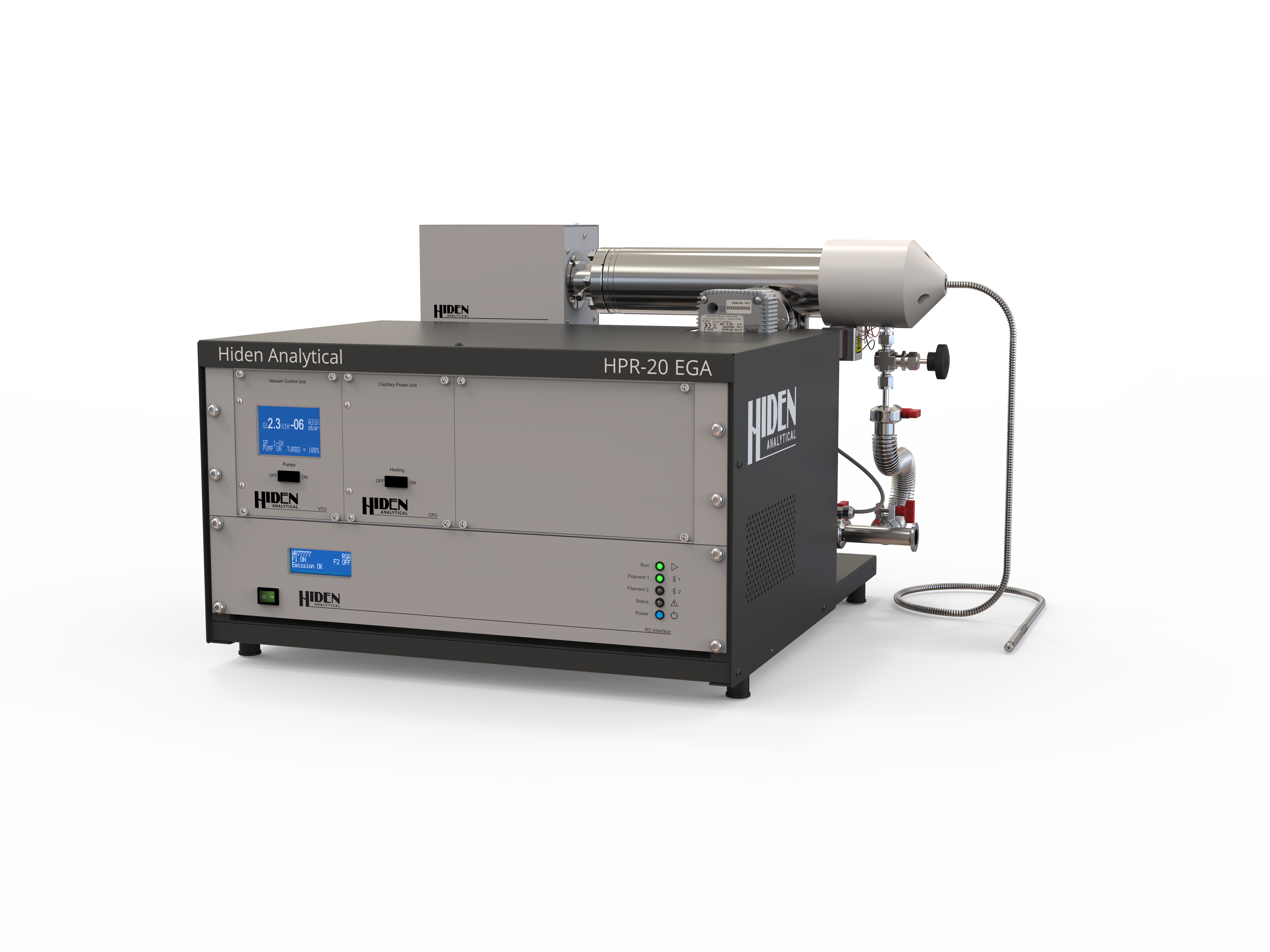

HPR-20 EGA
Compact bench top gas analysis system for evolved gas and vapor studies from thermogravimetric analysis ( TGA’s ) featuring a range of dedicated TGA interfaces to couple to all TGA systems.
HPR-20 OEMS
The Hiden HPR-20 for OEMS is a gas analysis system configured for continuous analysis of evolved gases and vapours in electrochemistry as a function of the applied potential on the real-time scale.
HPR-40 DEMS
The HPR-40 DEMS is a laboratory mass spectrometry system developed for in situ, real-time analysis of gases and volatile species in electrochemical research. Integrates seamlessly with the ECL Series of cells and accessories.
HPR-40 MIMS
A bench top membrane inlet mass spectrometer designed for analysis of gases, vapors and VOC’s in liquids, sea water, estuary, soil core and headspace. Options include cuvettes, single and multiple inlets, cells for differential electrochemistry mass spectroscopy ( DEMS ) and enzymes kinetics probes.
pQA Portable Quadrupole Analyser
Engineered for complete portability, the pQA Portable Quadrupole Analyser is a unique gas analysis solution for quantitative measurements of dissolved species in groundwater, fermentation cultures, soil samples, and more.
QIC BioStream
Mass Spectrometers for multistream fermentation gas analysis. For connection up to 80 bioreactors, with high and low flow configurations. Features OPC connectivity for output of raw and derived values: OUR, CER, RQ for example, with up to 80 stream capability.
QIC MultiStream
Mass Spectrometers for multistream gas analysis, with sampling for up to 80 streams in high or low sample flow configurations. Features OPC connectivity for output of raw and calibrated quantitative data output.
HPR-20 DLS
Gas analysis system that is configured for continuous analysis of gases and vapors at pressures near atmosphere in standard form. The mass spectrometer includes ultra-high resolution mode specifically designed for analysis at low masses for hydrogen isotopes and light gases.
HPR-20 EPIC
The Hiden HPR-20 EPIC gas analysis system is configured for continuous analysis of gases and vapors at pressures near atmosphere. The system includes the Hiden EPIC triple filter mass spectrometer including a high gain pulse ion counting electron multiplier detector with positive and negative ion detection. Analysis is both by standard electron impact ionization and by appearance potential soft ionisation (APSI-MS)
HPR-20 S1000
Gas analysis system that is configured for continuous analysis of gases and vapors at pressures near atmosphere. The HPR-20 S1000 system includes the Hiden 3F series 1000 amu mass range triple filter quadrupole mass spectrometer with dual Faraday and pulse ion counting electron multiplier detectors, with detection to 5 ppb.
HPR-60 MBMS
The HPR-60 MBMS (molecular beam mass spectrometer) is optimised for the analysis of both positive (+ve) and negative (-ve) ions, as well as neutral and radicals, making it a robust solution for plasma and combustion analysis.
LAS
A unique dedicated system for leak analysis of sealed packages. The system is automated for simple use in quality control or R&D environments and is designed for analysing the leak tightness of small to medium size battery assemblies.
Sampling Inlets for Hiden Mass Spectrometers
Hiden Gas Analysis systems are versatile. Inlet systems are user interchangeable, allowing for transformation of your mass spectrometer to suit new or multiple application requirements.
Advanced Industrial Gas Analysers
At Hiden Analytical, we provide industrial gas analysers and configured gas analyser systems for applications where users need to measure, monitor, or analyse gases and vapours in real time. Our product range includes:
- Systems for general gas analysis
- Evolved gas analysis
- Online electrochemical mass spectrometry
- Membrane inlet mass spectrometry
- Dissolved gas analysis
- Bioreactor off-gas analysis
Depending on the application, Hiden systems can support research, development, process monitoring, reaction analysis, and application-specific gas measurement workflows.
For users comparing gas analysis systems, products such as QGA 2.0, HPR-20 R&D, HPR-20 EGA, HPR-20 TMS, HPR-20 OEMS, HPR-40 MIMS, HPR-40 DEMS, and pQA Portable Quadrupole Analyser provide options for different sampling methods, measurement environments, and application areas.
Hiden’s gas analysis solutions are used across sectors including:
- Catalysis
- Thermal analysis
- Electrochemistry
- Dissolved gas analysis
- Fermentation
- Environmental studies
- Gas production
- Process monitoring
- Scientific research
Whether you need a flexible gas analyser system for laboratory investigations or an industrial gas analyser for process-focused applications, contact Hiden Analytical to discuss the best configuration for your requirements.
